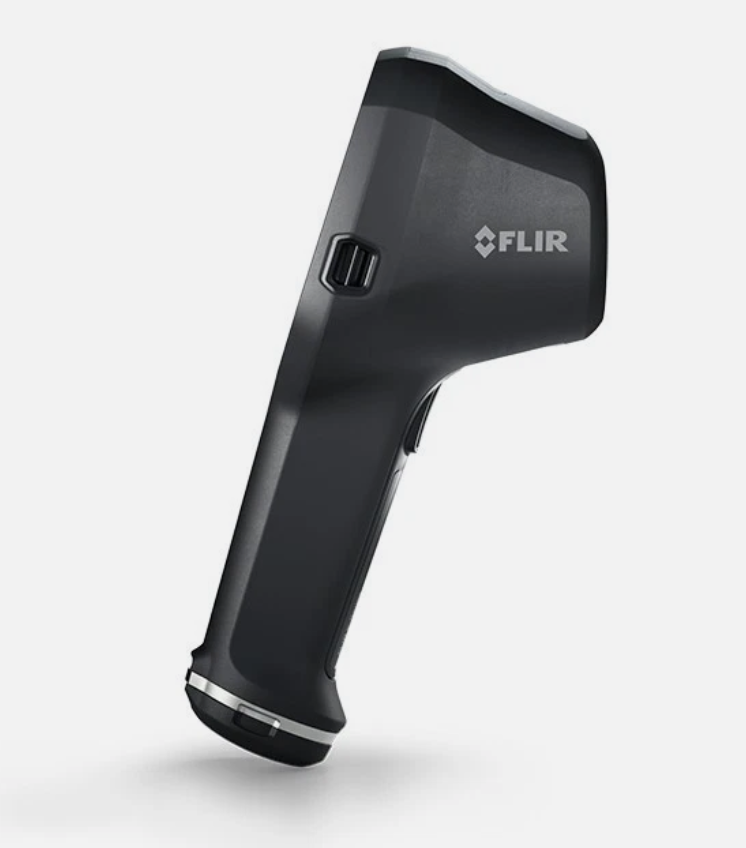

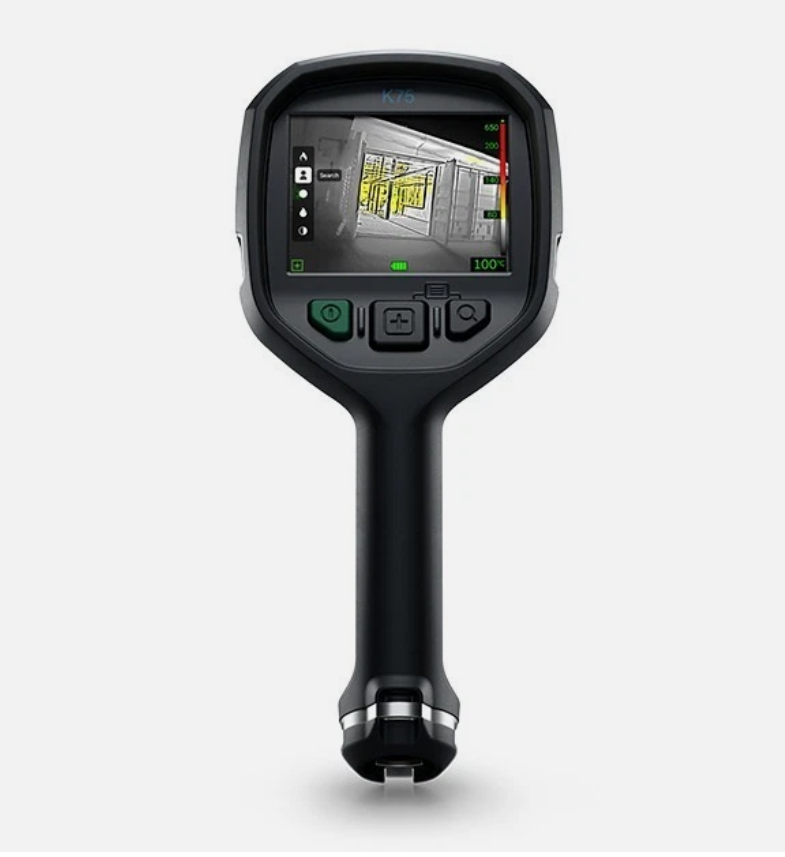

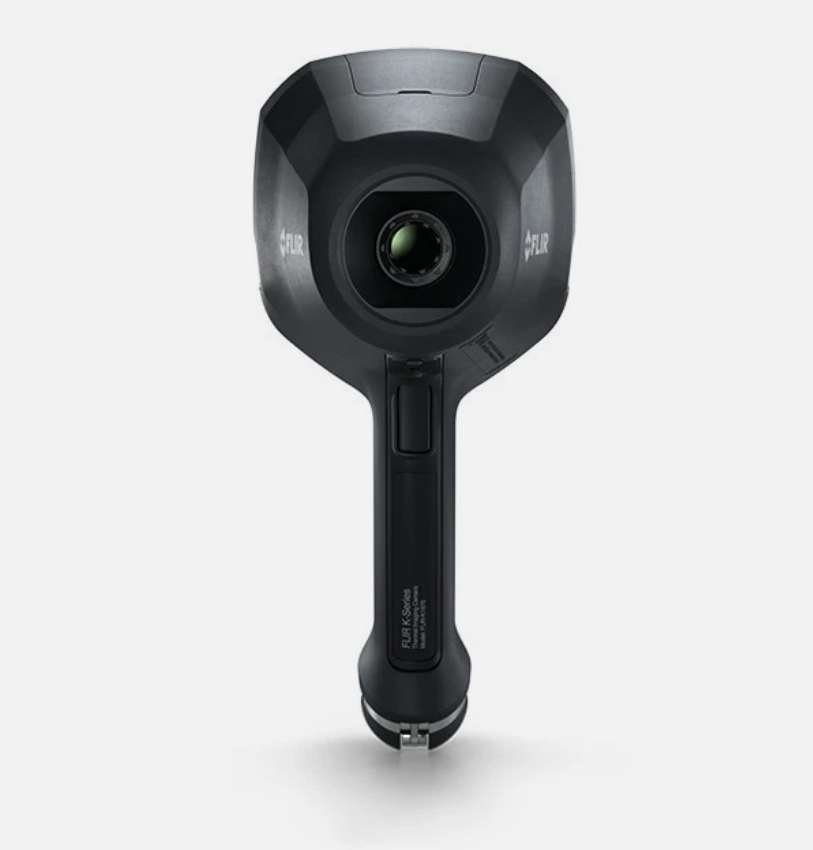

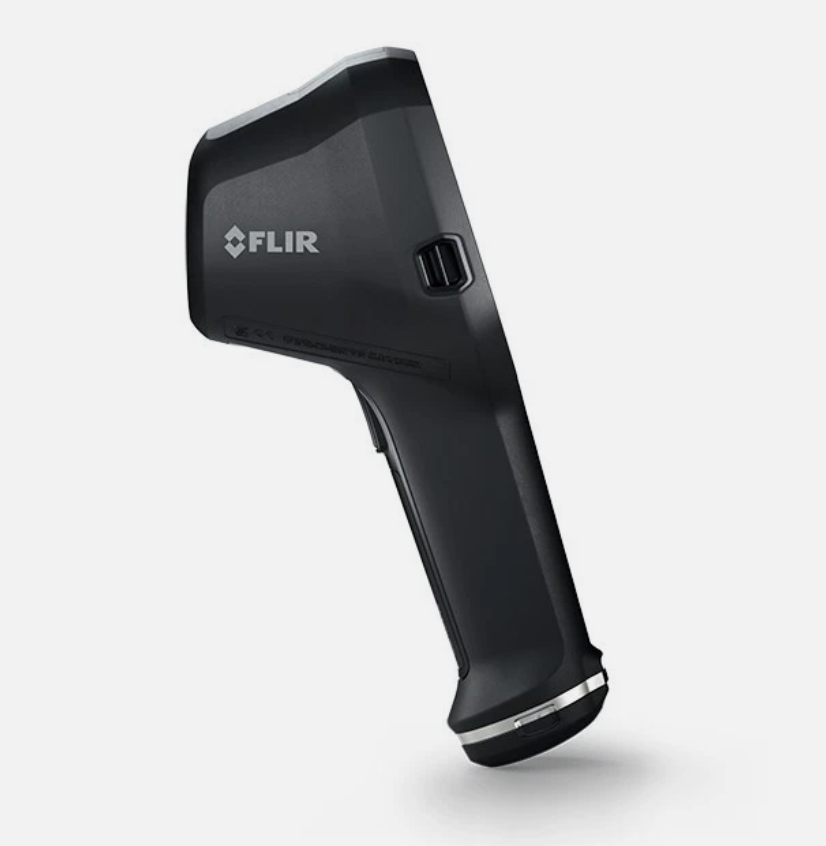

Flir K75 320x240 Thermal Camera Kit 18701-0101

Please allow 2 - 3 weeks lead time for this new product to arrive.

Comes with

• K75 infrared camera
• Battery (2 ea.)
• Battery charger
• Carabiner strap
• Power supply
• Printed documentation
• Retractable lanyard, 16 N (58 oz)
• USB cable

Item comes with a 12 month (1 year) warranty from the manufacturer. All functions are guaranteed to work or money will be refunded.

We Calibrate your Test Equipment! Contact us for more information on Calibration by visiting stratatek.com/calibration.

Flir reaches a new level of innovation with the thoughtfully-designed K75 TIC. This thermal firefighting camera not only helps first responders see through smoke and navigate fires safely: it also improves work and training efficiency thanks to its seamless connection to the new Flir Responder App.
Offering a new single-gain solution for continuous, freeze-free imaging, the K75 reveals dangers such as overheated doors, hidden fire spread, or holes in the floor—giving crews the confidence to move faster and safer in smoke-filled environments. Wireless connectivity to the new Responder App ensures crews can configure cameras efficiently, stream live video for training, and share mission data after the call.

Environmental & C ertifications
Drop	2 m (6.6 ft.) on concrete floor (IEC 60068-2-31)
Encapsulation	IP67 (IEC 60529)
Humidity (Operating and Storage)	IEC 60068-2-30/24 h 95
Magnetic fields	EN 61 000-4-8, Test level 5 for continuous field (severe industrial environment)
Operating Temperature Range	150°C (302°F): 15 min 260°C (500°F): 5 min
Relative Humidity	95% relative humidity 25°C to 40°C (77°F to 104°F) non-condensing
Shock	25 g (IEC 60068-2-27)
Storage Temperature Range	-40°C to 85°C (-40°F to 185°F)
Vibration	2 g (IEC 60068-2-6)



Power
Battery capacity	5.8 Ah, at 20°C to 25°C (68°F to 77°F)
Battery operating time	Approximately 4 hours @ 25°C (77°F) ambient temperature and typical use
Battery type	Li-Ion
Battery voltage	3.7 V
Charging system	Desktop 2-bay charger Optional in-truck charger
Charging Temperature	0°C to 45°C (32°F to 113°F)
Charging Time	<3 h to capacity enough for 3 h operation
Power Management	Automatic shutdown and sleep mode



Measurement & Analysis
Accuracy	±4°C (±7.2°F) or ±6% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F)
Object Temperature Range	Single range solution operating: -20°C to 650°C (-4°F to 1202°F)



Communication & Data Storage
Image Storage	Standard JPEG, stored in the camera and the Flir Responder app
Image Storage Capacity	200 files in total
Interface	Update via OTA (Wi-Fi using the Flir Responder app) Legacy support for updates from PC and data transfer to and from PC
Storage Media	Internal flash memory
USB	USB-C

Specifications

Highlighted
IR Resolution	320 × 240
Display	4" LCD, 640 × 480, backlit
Object Temperature Range	Single range solution operating: -20°C to 650°C (-4°F to 1202°F)
Image Modes	Basic, Search, Detection, High Heat, White Hot



Imaging & Optical
Contrast optimization	Digital enhancement, Flexible Scene Enhancement (FSX®)
Detector Type	Focal plane array (FPA), uncooled microbolometer
Field of view (FOV)	53° × 40°
Image Frequency
Image Frequency	30 Hz
Image Modes	Basic, Search, Detection, High Heat, White Hot
IR Resolution	320 × 240
Non-radiometric IR video recording	MPEG4 to internal flash memory
Non-radiometric IR video streaming	Uncompressed colorized video using USB and MPEG-4 Stream over Wi-Fi to Flir Responder app
Pitch	12 µm
Spectral Range	7.5 to 14 µm
Thermal Sensitivity/NETD	<60 mK
Zoom	2× digital zoom
