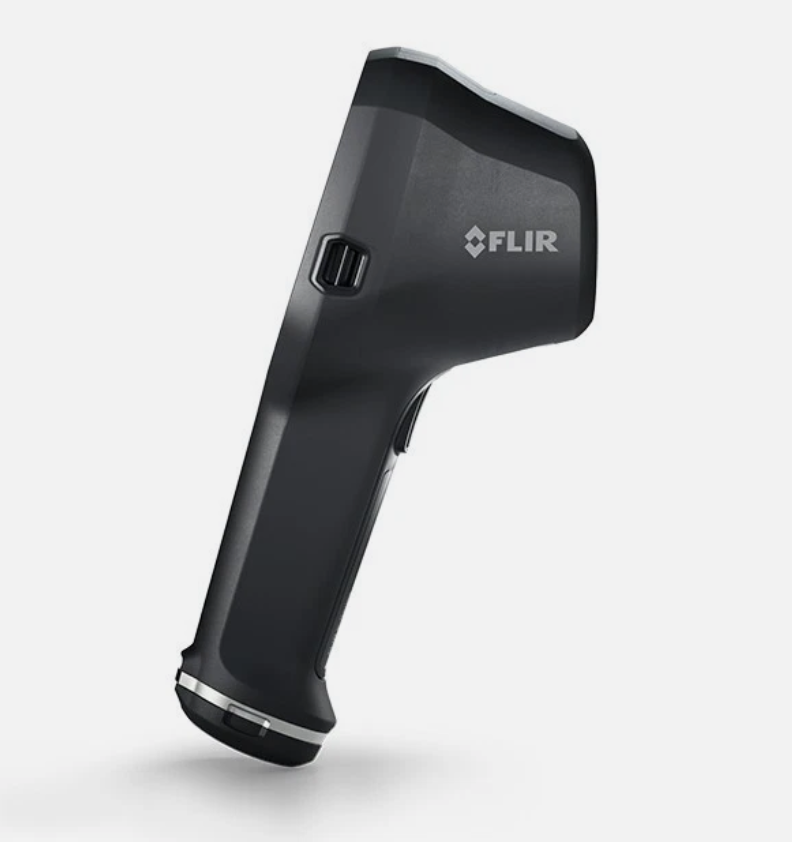

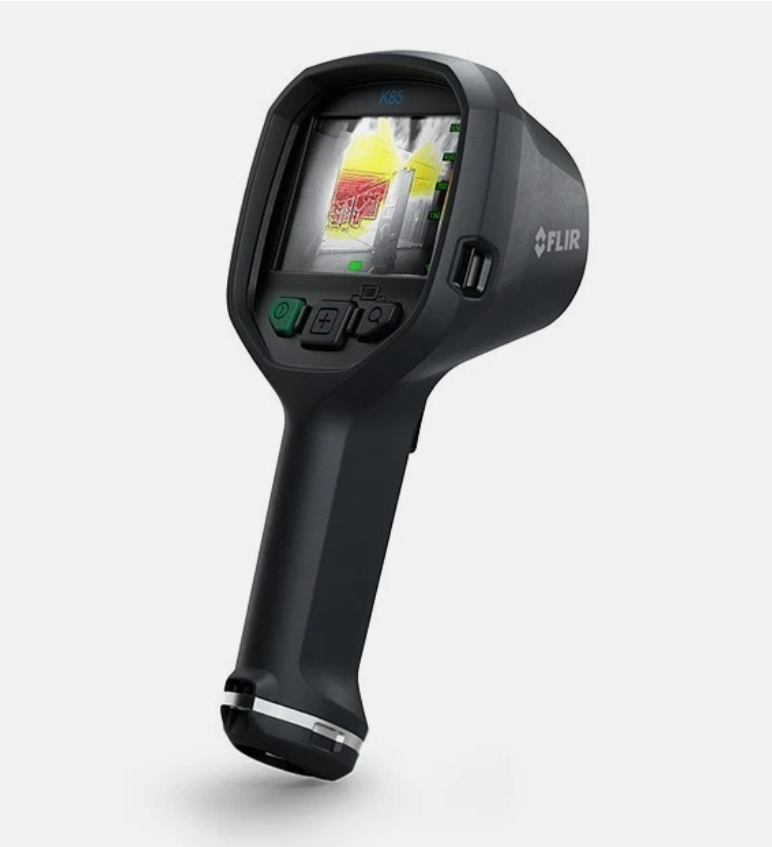

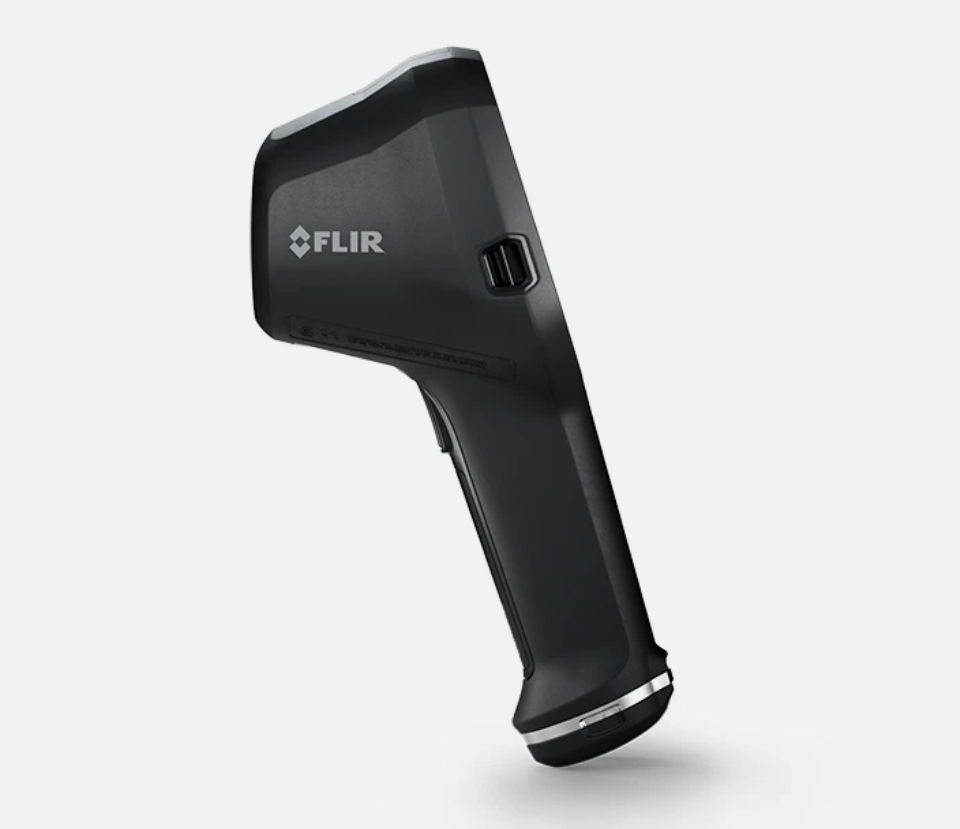

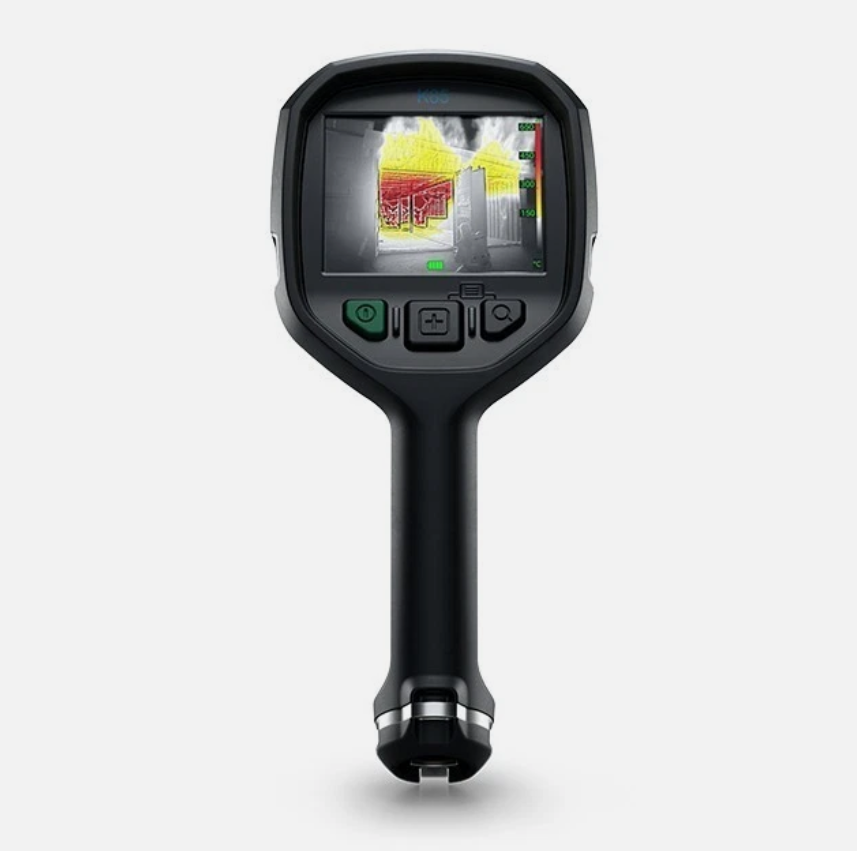

FLIR K85 640x480 Thermal Camera Kit 18702-0201

Please allow 2 - 3 weeks lead time for this new product to arrive.

Comes with

• K85 infrared camera
• Battery (2 ea.)
• Battery charger
• Carabiner strap
• Power supply
• Printed documentation
• Retractable lanyard, 16 N (58 oz)
• USB cable

Item comes with a 12 month (1 year) warranty from the manufacturer. All functions are guaranteed to work or money will be refunded.

We Calibrate your Test Equipment! Contact us for more information on Calibration by visiting stratatek.com/calibration.



The thoughtfully-designed Flir K85 TIC improves firefighter awareness with high-resolution imaging and an innovative single-range solution that reveals greater detail in smoke-filled and high-heat environments without concerns about delays, image freeze, or loss of information.
This thermal imaging camera helps crews easily spot victims, track fire behavior, and assess structural risks—all without losing vision when conditions change. Plus, the K85 improves efficiency through its seamless wireless connection to the new Flir Responder App for camera configuration, media handling, and live-streaming that allows departments to train and document missions with ease.

Measurement & Analysis
Accuracy	±4°C (±7.2°F) or ±6% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F)
Object Temperature Range	Single range solution operating: -20°C to 650°C (-4°F to 1202°F)



Communication & Data Storage
Image Storage	Standard JPEG, stored in the camera and the Flir Responder app
Image Storage Capacity	200 files in total
Interface	Update via OTA (Wi-Fi using the Flir Responder app) Legacy support for updates from PC and data transfer to and from PC
Storage Media	Internal flash memory
USB	USB-C



Imaging & Optical
Contrast optimization	Digital enhancement, Flexible Scene Enhancement (FSX®)
Detector Type	Focal plane array (FPA), uncooled microbolometer
Field of view (FOV)	53° × 40°
Image Fequency
Image Frequency	30 Hz
Image Modes	Basic, Search, Detection, High Heat, White Hot
IR Resolution	640 × 480
Non-radiometric IR video recording	MPEG4 to internal flash memory
Non-radiometric IR video streaming	Uncompressed colorized video using USB and MPEG-4 Stream over Wi-Fi to Flir Responder app
Pitch	12 µm
Spectral Range	7.5 to 14 µm
Thermal Sensitivity/NETD	<60 mK
Zoom	2× digital zoom



Environmental & Certifications
Drop	2 m (6.6 ft.) on concrete floor (IEC 60068-2-31)
Encapsulation	IP67 (IEC 60529)
Humidity (Operating and Storage)	IEC 60068-2-30/24 h 95
Magnetic fields	EN 61 000-4-8, Test level 5 for continuous field (severe industrial environment)
Operating Temperature Range	150°C (302°F): 15 min 260°C (500°F): 5 min
Relative Humidity	95% relative humidity 25°C to 40°C (77°F to 104°F) non-condensing
Shock	25 g (IEC 60068-2-27)
Storage Temperature Range	-40°C to 85°C (-40°F to 185°F)
Vibration	2 g (IEC 60068-2-6)



Power
Battery capacity	5.8 Ah, at 20°C to 25°C (68°F to 77°F)
Battery operating time	Approximately 4 hours @ 25°C (77°F) ambient temperature and typical use
Battery type	Li-Ion
Battery voltage	3.7 V
Charging system	Desktop 2-bay charger Optional in-truck charger
Charging Temperature	0°C to 45°C (32°F to 113°F)
Charging Time	<3 h to capacity enough for 3 h operation
Power Management	Automatic shutdown and sleep mode

Features

• Added convenience for fast measurements
• Upgraded probe accessories
• Customize thermal images
